Globe Valves Suppliers in Dubai
GLOBE VALVES
STANDARD
- Globe Valve Design Standard: BS 1873, ASME B16.34
- Face to Face: ASME B16.10
- End Connection: ASME B16.5, ASME B16.25
- Inspection and Test: API 598
- Visual Inspection Standard: API 6D
MAIN FEATURES

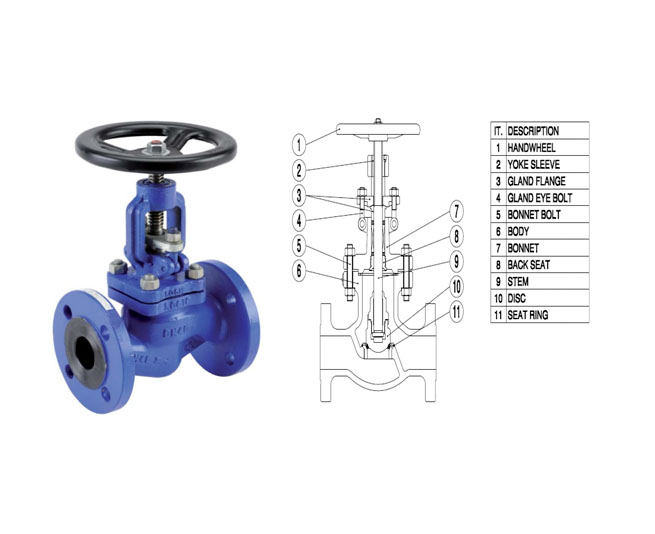

- Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug can be screwed in to close (or shut) the valve. The plug is also called a disc or disk.
- In globe valves, the plug is connected to a stem which is operated by screw action using a handwheel in manual valves.
- Typically, automated globe valves use smooth stems rather than threaded and are opened and closed by an actuator assembly.
- Globe valve is mainly used to control the flow of fluid on the pipeline, that is partially or filly open or close.
- Globe valves could be used in different temperature and pressure depending on the process condition and could be used for a variety of different fluid depending on the valve material.
MAIN CATEGORY BASIS
- Bolted Bonnet
- Pressure Sealing
- Operation: Handwheel, Gearbox, pneumatic, Electric, Hydraulic
- Class: 150 ~ 2500
- Size Range: 2” ~ 24”
- Temperature: -29℃ ~ 593 ℃
Industrial Valves
Butterfly Valves
- Butterfly Valve Design Standard: API 609, ASME B16.34
- Face to Face: ASME B16.10
- End Connection: ASME B16.5, ASME B16.25, ASME 16.47
Gate Valve
- Gate Valve Design Standard:API 600
- Face to Face: ASME B16.10
- End Flange: ASME B16.5
Globe Valve
- Globe Valve Design Standard: BS 1873, ASME B16.34
- Face to Face: ASME B16.10
- End Connection: ASME B16.5, ASME B16.25
Check Valves
- Check Valve Design Standard: API 6D, API 594, ASME B16.34
- Face to Face: ASME B16.10
- End Connection: ASME B16.5, ASME B16.25
Emergency Shut Down Valve
Y-type Strainers / Basket Strainers
