Valves

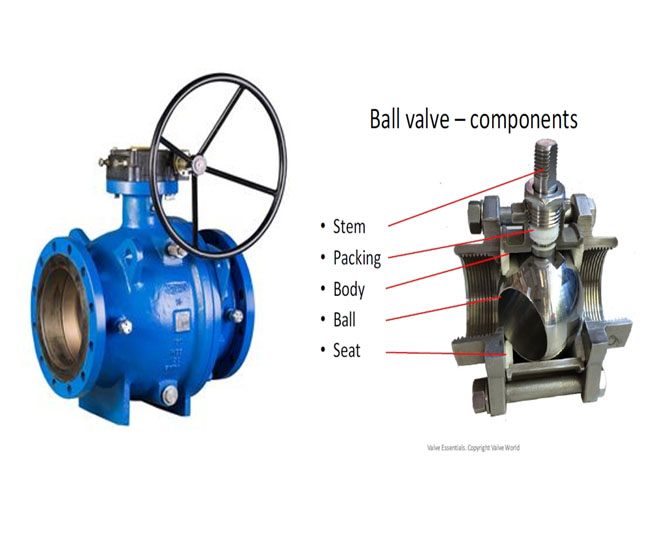

Ball Valves
Ball Valves
STANDARD
- Ball Valve Design Standard: API 6D, ASME B16.34
- Face to Face: ASME B16.10
- End Connection: ASME B16.5, ASME B16.25
- Inspection and Test: API 598
- Visual Inspection Standard: API 6D
MAIN FEATURES
- Ball valve is a form of quarter-turn which uses a hollow, perforated and pivoting ball to control flow through it.
- Ball valve opens when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.
- Ball valve is mainly used to control the flow of fluid on the pipeline, that is partially or filly open or close.
- Ball valves could be used in different temperature and pressure depending on the process condition and could be used for a variety of different fluid depending on the valve material.
MAIN CATEGORY BASIS
- Fully Welded
- Double Block & Bleed
- Side Entry Floating
- Side Entry Trunnion
- Top Entry
- Metal Sealing
- Operation: Handwheel
- Class: 150 ~ 2500
- Size Range: 1/2”-58”
- Temperature: -198℃~593 ℃
Industrial Valves
Butterfly Valves
- Butterfly Valve Design Standard: API 609, ASME B16.34
- Face to Face: ASME B16.10
- End Connection: ASME B16.5, ASME B16.25, ASME 16.47
Gate Valve
- Gate Valve Design Standard:API 600
- Face to Face: ASME B16.10
- End Flange: ASME B16.5
Globe Valve
- Globe Valve Design Standard: BS 1873, ASME B16.34
- Face to Face: ASME B16.10
- End Connection: ASME B16.5, ASME B16.25
Check Valves
- Check Valve Design Standard: API 6D, API 594, ASME B16.34
- Face to Face: ASME B16.10
- End Connection: ASME B16.5, ASME B16.25
Emergency Shut Down Valve
Y-type Strainers / Basket Strainers
